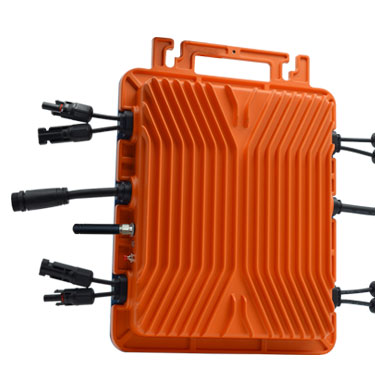

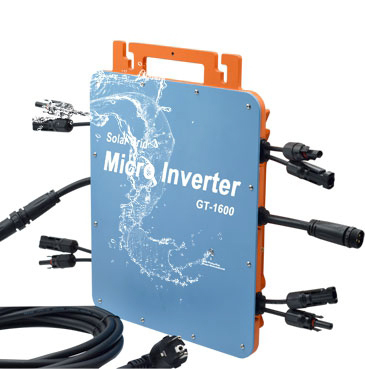

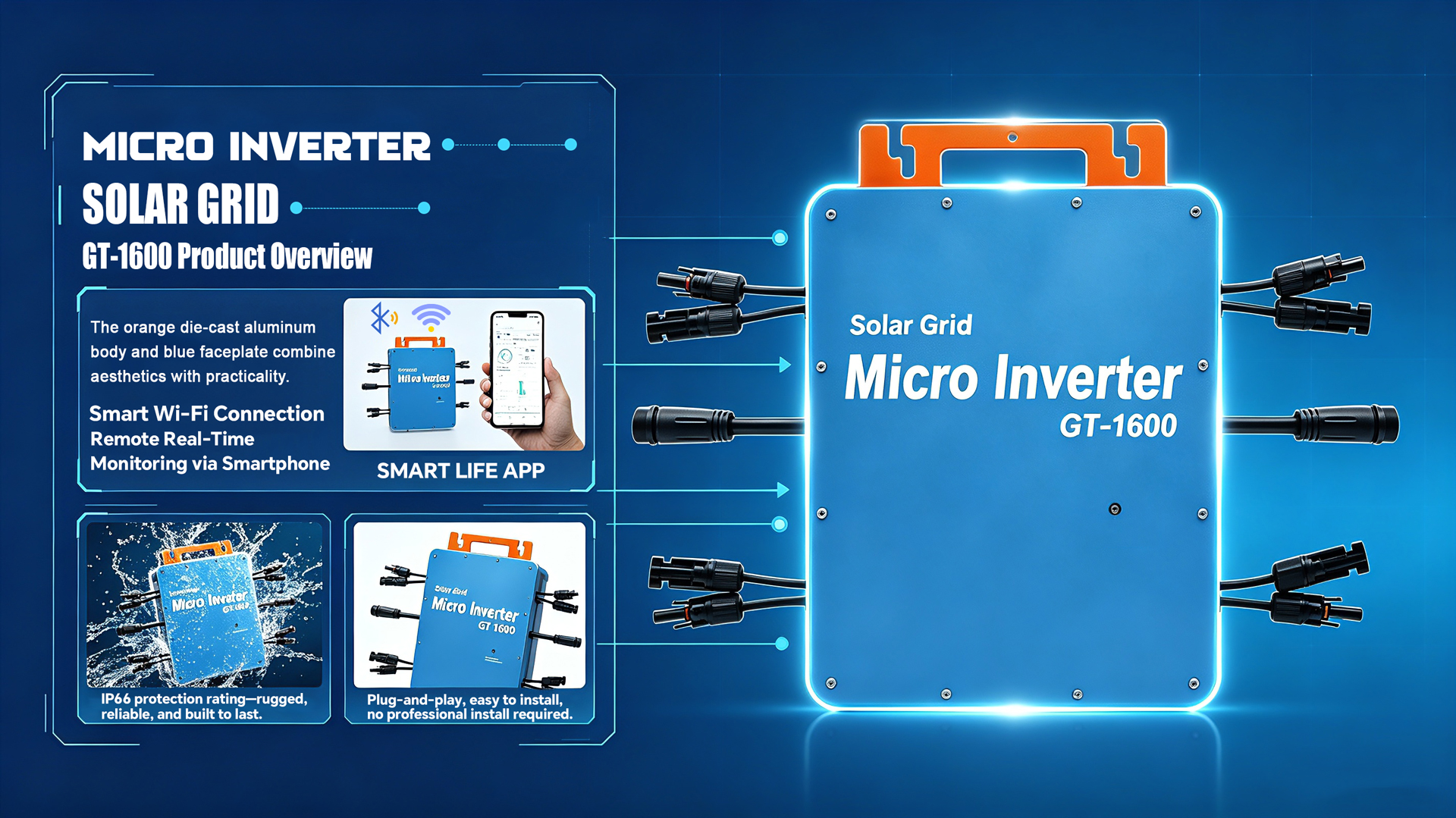

GT-1600 Micro Inverter
Item No.: GT-1600
Size: 425*395*95mm
Materials: color/blue
Technical Specifications
| Model | GT-1600 |
| Input Data(DC,PV) | |

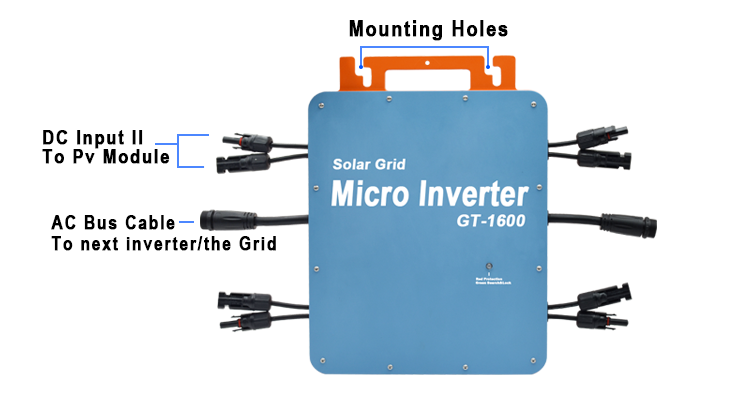

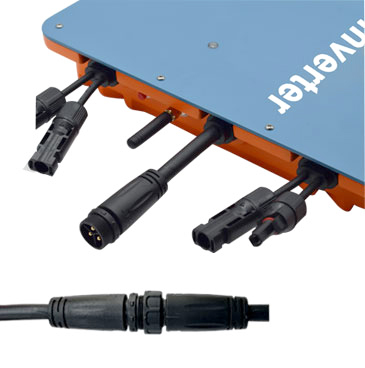

| Input MC4 Connector Quantity | 4 Sets |
| MPPT Voltage Range | 25V~48V |
| Operating Voltage Range | 25V~60V |
| Maximum Input Voltage | 60V |
| Startup Voltage | 25V |
| Maximum Input Power | 1600W |
| Maximum Input Current | 12.5*4 |
| Output Data(AC) | |
| Single-Phase Grid | 120V &230V |
| Rated Output Power | 1600W |
| Standard Output Current @120VAC | 13.3A |
| Standard Output Current @230VAC | 6.9A |
| Standard Voltage Output | 120V &230VAC |
| Default Output Voltage Range | @120VAC:80V~160V/@230VAC:180V~270V |
| Power Factor | >0.99% |
| Total Harmonic Distortion | THD<5% |
| Efficiency | |
| Peak Efficiency | 95% |
| Nominal MPPT Efficiency | 99.5% |
| Nighttime Power Consumption | <1W |
| Mechanical Data | |
| Operating Temperature Range | -40℃ to+65℃ |
| Storage Temperature Range | -40℃ to+85℃ |
| Product Dimensions & Weight | 22.5*34*4.2cm / 4kg |
| Package Dimensions & Weight | 26.2*36*9.5cm / 4.7kg |

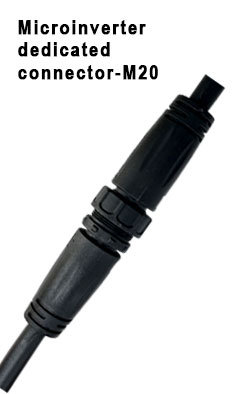

| Maximum Current of AC Bus Cable | 20A |

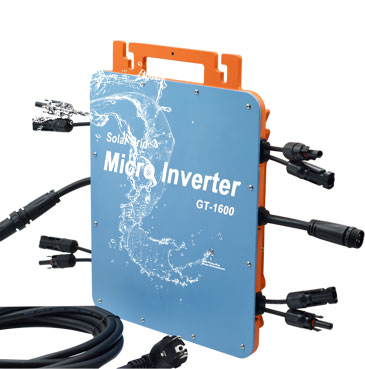

| Waterproof Rating | IP66 |
| Cooling Mode | Natural Cooling |
| Other Functions | |
| Communication Wi-Fi | 2.4G Wi-Fi |
| Transformer Design | High-frequency transformer |
| Protection Functions | Isolated Island Protection Voltage Protection Frequency Protection Temperature Protection Current Protection |
| Certifications | Inmetro,VDE4105,VDE0126,EN50549... |
Product Highlights
1. High Conversion Efficiency
High conversion efficiency maximizes the transformation of solar energy into usable electricity, boosting power generation output.

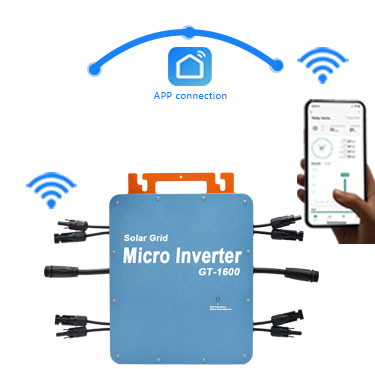

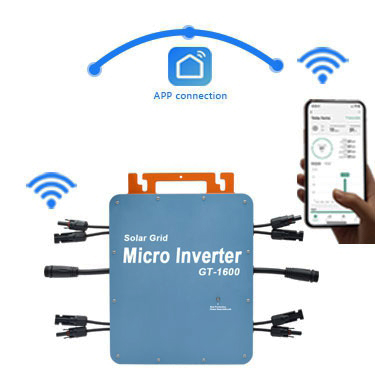

2. Intelligent Remote Monitoring
Pairs with the Smart Life app, allowing you to view power generation data and monitor device status anytime, anywhere.
3. Comprehensive Safety Protection
Features multiple safeguards—including over-voltage, over-current, over-temperature, and anti-islanding protection—to ensure the safety of the equipment and electrical usage.
4. Flexible Installation
Suitable for various scenarios such as balconies, rooftops, and commercial/industrial sites; adaptable to installation requirements across global regions.
5. Stable & Durable Operation
Rigorously tested for high-temperature resistance and weather durability, ensuring stable output during long-term outdoor operation.
6. Convenient O&M & Alerts
Proactive fault alerts enable rapid issue diagnosis, reducing operation and maintenance costs.
7. IoT Smart Interconnectivity
Unified management of the PV system and whole-home smart devices via a single app; control your entire home IoT ecosystem through one platform.
8. Global Certifications
Complies with electrical standards across multiple countries, enabling deployment in markets such as Germany, France, the USA, Brazil, and Southeast Asia.
